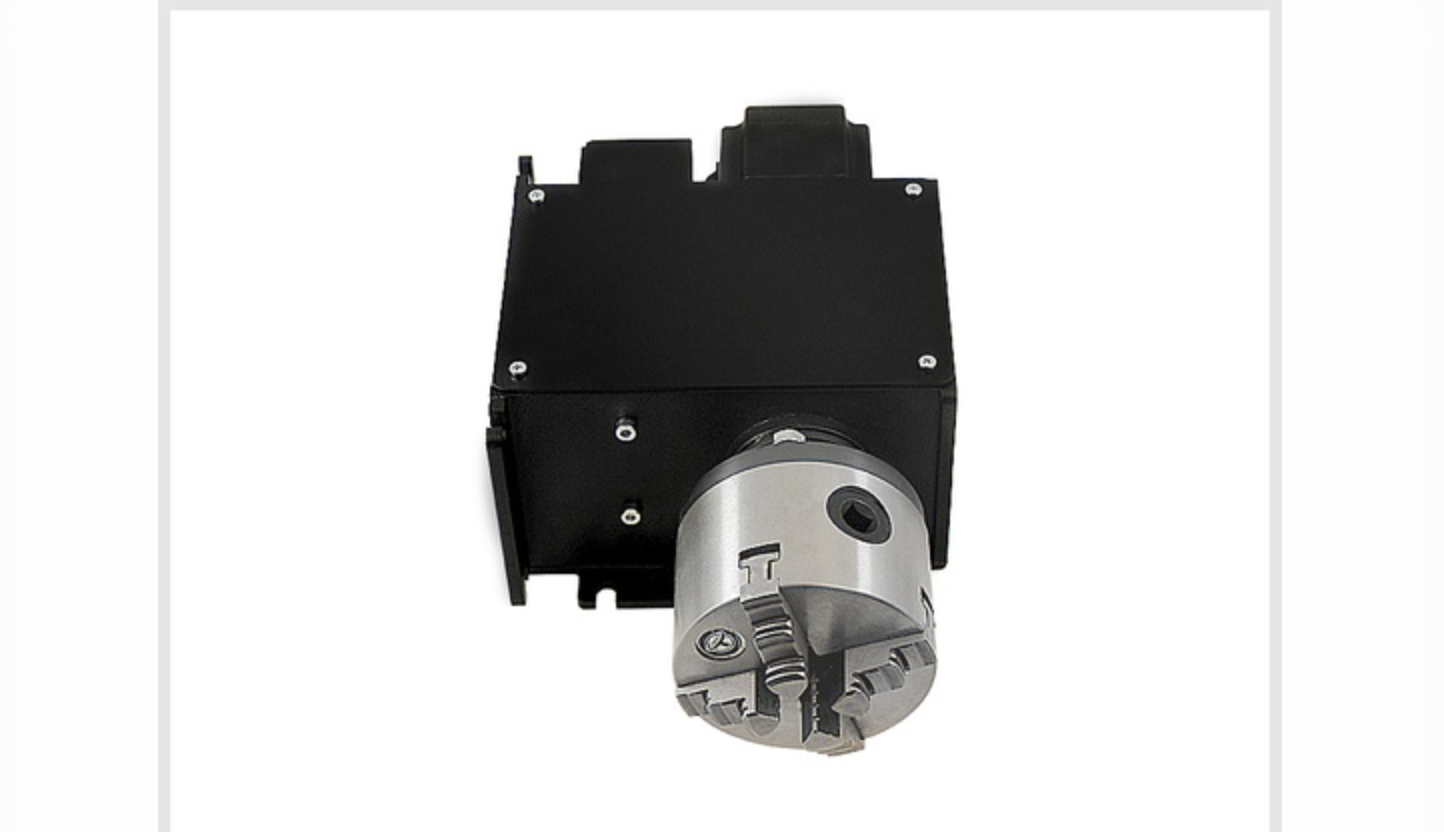

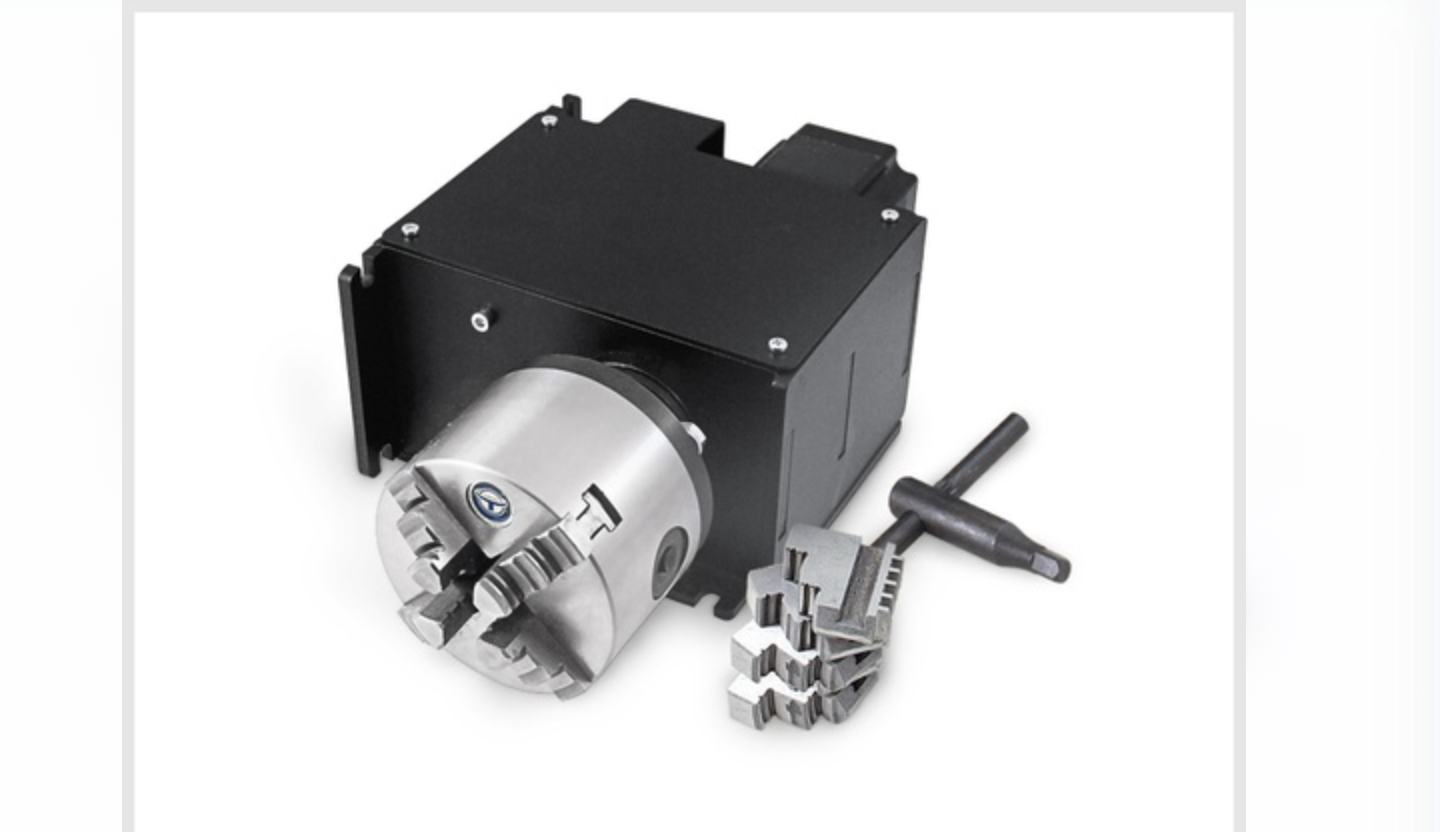

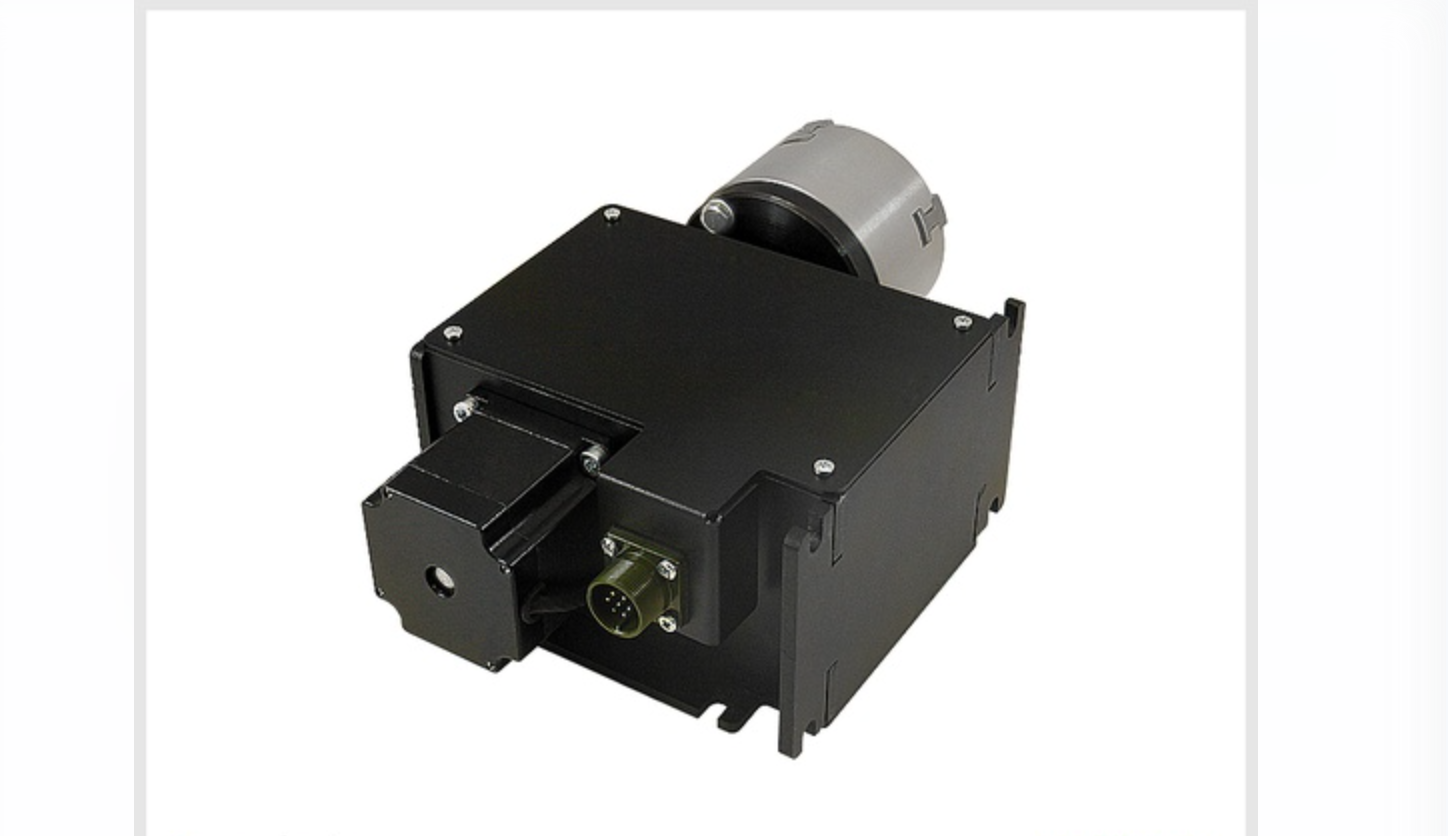

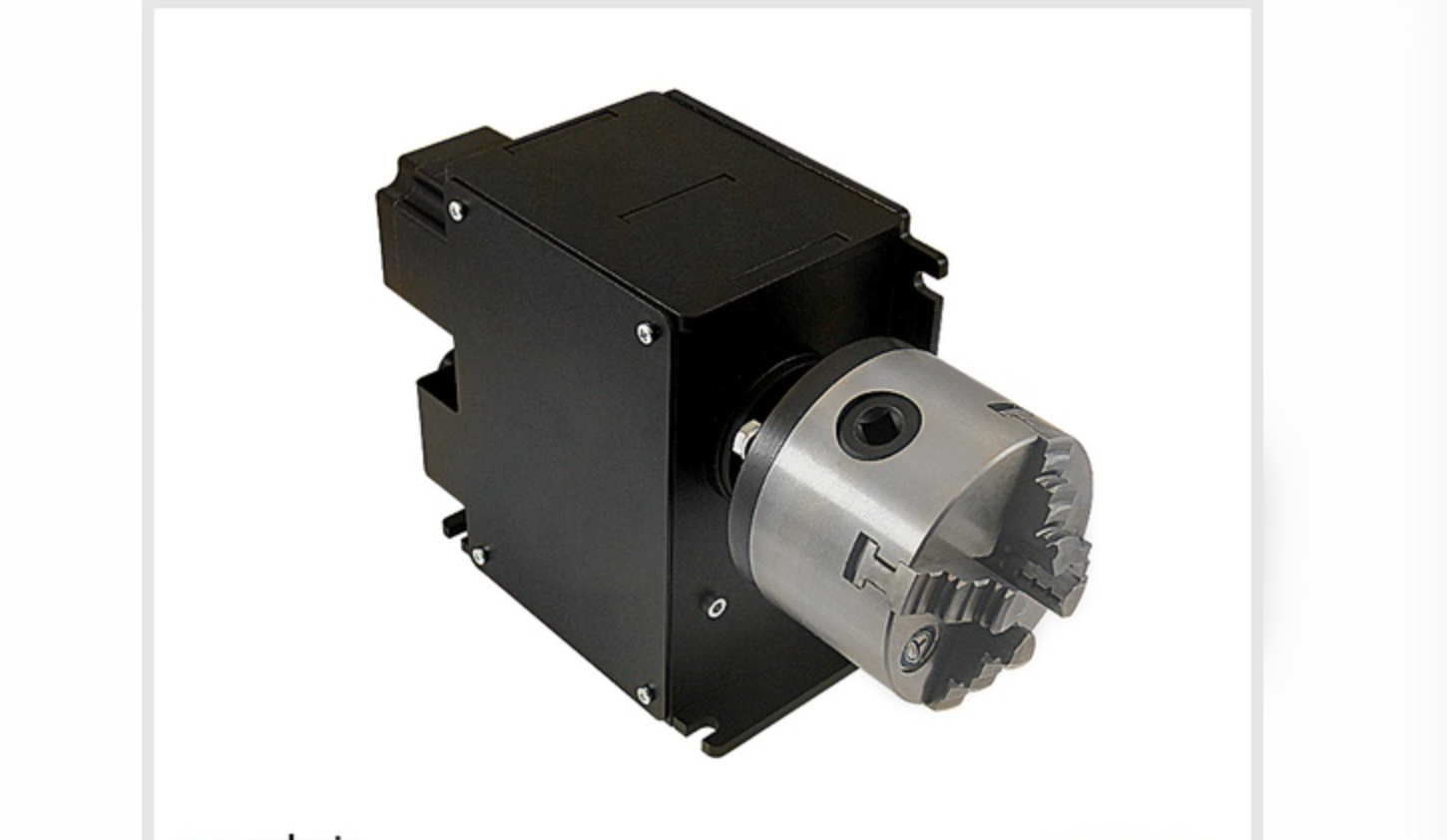

Rotary axis for CNC machine. Designed to rotate parts at different angles during processing. The reducer is made on a toothed belt drive with a gear ratio of 1: 9. 4-jaw lathe chuck K12-80, stepper motor PL57H56-D8, rotation speed 0 ... 100 rpm. Weight 6.35 kg. Specifications: Reducer: toothed belt transmission; Gear ratio: 9; Stepper motor: PL57H56-D8; Lathe chuck: K12-80; Rotation frequency: 0 ... 100 rpm; Weight: 6.35 kg; Radial and face runout of the workpiece in the chuck: 0.2mm MAX.
