Product description

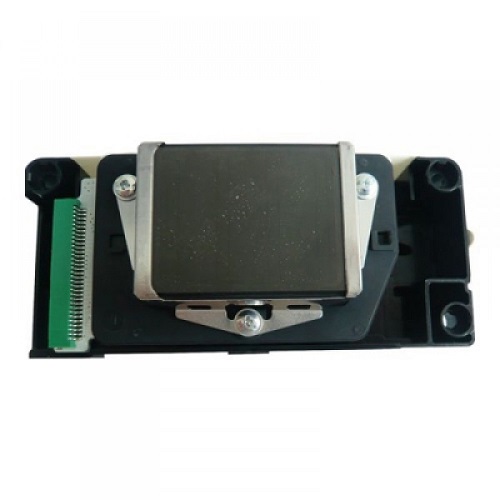

This original Mimaki JV33/JV5 printhead is suitable for the Mimaki CJV / JV33 / JV5 solvent printer series per the compatibility list. This printhead has a native resolution of 1440dpi, 8 nozzle lines (corresponding with 8 independent ink channels) and 180 nozzles per line.This printhead is either used in 4-colours or 6-colours and has a minimum, variable droplet size of 1.5 pico litre (max. droplet size is 21 pico litre). The typical firing frequency for this print head is 8 kHz. This generation of printheads allows fast speed, high resolution printing with eco-solvent and mild solvent inks. This original printhead is delivered in a sealed package, with the Head ID, but without the Head Memory Board for Mimaki printers (you can safely re-use the Head Memory Board of the printhead you are replacing). Mimaki part number for this printhead is M007947. This printhead is the original Mimaki printhead (green board). The Mimaki printhead with the memory board is sku M007947. The Mutoh Valuejet 1604 printhead is sku DF-49684. This printhead carries a one year manufacturer warranty. Specifications :- Technology : Micro-Piezo- Native resolution : 1440 dpi- Min. Droplet Size : 1.5 pico litre- Max. Droplet Size : 21 pico litre- Tot. Amount of Nozzles : 1440 (8 lines x 180 nozzles)- Firing Frequency : 8 kHz- Ink Compatibility : eco-solvent and mild solvent
Learn more
Available
648.0
USD/pcs
648.0
USD
Minimum order: 1 pcs
Supply ability: 75 pcs/per month
PUTRA
Not verified supplier
Indonesia
Shipping information
Calculate and complete your cargo transportation worldwide using Qoovee Logistics.
Guaranteed shipment on time and secure payment Calculate shipping from QooveeSimilar products
Best Buy Co Inc
United States of America
USD
200.0/pcs
200.0
Model:Creality3D Ender-3 Pro
Maximum Print Size:8.66"x8.66"x9.8"
Printing Speed:varies
Nozzle Size:0.4mm
Features:Removable build plate
Compatible Devices:Personal Computer
Use:Easy to Use
MPN:B07GYRQVYV
Color:Black
Material:Aluminum
Supported File Format:OBJ, STL, STEP
Type:Does not apply
Brand:Comgrow
Best Buy Co Inc
United States of America
USD
1500.0/pcs
1500.0
Specifications:
Model: X1390C
Working size: 1300mm x 900mm with double side open door
Electric Up/down table: 7.87" (200mm)
Laser tube type: Co2 Glass sealed laser tube
Laser power: RECI W6 (130w-150w)
Working table: Blade table
Cooling system: CW-5000 water chiller
Driver type: Stepping Motor
Max speed: 1000mm/s
PC Interface: USB2.0 and USB Disk
Software: Top Wisdom System (Auto laser software)
Voltage: 110V~240V/50Hz~60Hz
Image form: HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI
Warranty: 12 Months (9 months for Laser tube, 3 months mirrors and lens)
Machine Dimension (L/W/H): 1900 x 1340 x 970 (mm)
Package Dimension (L/W/H): 1960 x 1400 x 1110 (mm)
Package: Standard Wooden case for export
PUTRA
Indonesia
USD
796.0/pcs
796.0
The Konica Minolta KM1024i 6988H printhead is a robust, shear mode, piezo on-demand printhead featuring an All-nozzle Independent Drive System with a Multi-line Structure. In contrast with the existing 3-cycle system drive, an independent drive system that enables simultaneous emission from all 1024 nozzles has been adopted. The high-density structure featuring 4 lines of 256 nozzles aligned with high precision enhances positioning accuracy to realize high-definition print quality. The Konica Minolta KM1024i 6988H printhead offers a Maximum Drive Frequency of 45kHz, approximately 3 Times greater than that of the KM1024 Series, which makes it the ideal inkjet printhead for development of single-pass system inkjet printers capable of high-speed printing. This printhead is a replacement of the Konica KM1024i MHE-D which is discontinued. Environmentally-considerate Approved Green ProductThe Konica Minolta KM1024i 6988H printhead incorporates only approximately one-third of the petroleum-derived materials and toxic chemicals used in the current KM1024 Series. In addition, the nozzle unit surface area is the same as that of the KM1024 Series. Specifications :- Technology : Piezo Drop On-Demand- Native Resolution : 360 dpi- Cal. Droplet Size : 13 pico litre- Max. Drops in Greyscale : 8 drops- Tot. Amount of Nozzles : 1024 (256 nozzles per line)- Print Width : 72 mm- Firing Frequency : 45 kHz- Ink Compatibility : UV, Oil and Solvent Inks- Heater : integrated- Dimensions : W131mm x D18mm x H94mm- Weight : Approx. 150g
PUTRA
Indonesia
USD
648.0/pcs
648.0
This original Mimaki JV33/JV5 printhead is suitable for the Mimaki CJV / JV33 / JV5 solvent printer series per the compatibility list. This printhead has a native resolution of 1440dpi, 8 nozzle lines (corresponding with 8 independent ink channels) and 180 nozzles per line.This printhead is either used in 4-colours or 6-colours and has a minimum, variable droplet size of 1.5 pico litre (max. droplet size is 21 pico litre). The typical firing frequency for this print head is 8 kHz. This generation of printheads allows fast speed, high resolution printing with eco-solvent and mild solvent inks. This original printhead is delivered in a sealed package, with the Head ID, but without the Head Memory Board for Mimaki printers (you can safely re-use the Head Memory Board of the printhead you are replacing). Mimaki part number for this printhead is M007947. This printhead is the original Mimaki printhead (green board). The Mimaki printhead with the memory board is sku M007947. The Mutoh Valuejet 1604 printhead is sku DF-49684. This printhead carries a one year manufacturer warranty. Specifications :- Technology : Micro-Piezo- Native resolution : 1440 dpi- Min. Droplet Size : 1.5 pico litre- Max. Droplet Size : 21 pico litre- Tot. Amount of Nozzles : 1440 (8 lines x 180 nozzles)- Firing Frequency : 8 kHz- Ink Compatibility : eco-solvent and mild solvent
PUTRA
Indonesia
USD
199.0/pcs
199.0
The Epson DX4 Solvent printhead is suitable for Roland, Mutoh and Mimaki eco-solvent, mild solvent and aquaeus printers. The Epson DX4 printhead has a native resolution of 360 dpi, 2 nozzle lines (corresponding with 2 independent ink channels) and 180 nozzles per line. The Epson DX4 (fourth generation micro-piezo printhead) has a typical firing frequency of 8 kHz, a minimum droplet size of 3,5 pico litre and is used for either 1 colour through both channels or 2 colours through the independent channels. The Epson DX4 solvent printhead is used for a wide range of eco-solvent and mild solvent wide format printing applications. This is the original Epson DX4 solvent printhead (Roland part number 1000002201 / 22805470 / 6000005213, Mutoh part number DF-49684 / DG-42386, Mimaki part number M004905), delivered in a sealed Roland original package.This print head is compatible with a wide range of printers as specified in the printer compatibility. Specifications :- Technology : Micro-Piezo- Native resolution : 360 dpi- Min. Droplet Size : 3,5 pico litre- Tot. Amount of Nozzles : 360 (2 lines x 180 nozzles)- Firing Frequency : 8 kHz- Ink Compatibility : eco-solvent and mild solvent To be used with :Roland SOLJET ProII SJ-540,SJ-645EX,SJ-655EX,SJ-740,SJ-745EX,SJ-1045EX, SJ-1000,SC-540,SC-545EX,Roland VersaCAMM SP-300V, SP-540V, VP-300, VP-300I, VP-540,VP-540I,Roland SOLJET PRO III XJ-640, XJ-740, XC-540, XC-540W, XC-545MT,Roland VersaCAMM Print & Cut VS-540/540I,Roland VersaArt RS-640,Mimaki JV3 (JV3-130, JV3-130sp, JV3-160, JV3-160sp, JV3-250, JV3-250sp etc.)Mutoh RH-II(Falcon2), RH-3, Mutoh RJ-8000, Spitfire 65, Spitfire 90, Blizzard 65, Blizzard 90.
3DE-System
Ukraine
USD
1000.0/pcs
1000.0
Specifications 3DESYS 20PRO 2019 5 years Warranty Printer and printing properties Printing technology FDM layer-by-layer direction Printing area, mm (WxDxH) 200x200x200 Print head One head with automatic nozzle and replaceable nozzle Filament diameter 1.75 mm Resolution (optimal) 0.20 mm nozzle: 20-80 micron 0.25 mm nozzle: 30 - 100 micron 0.30 mm nozzle: 40 - 130 micron 0.35 mm nozzle: 50 - 150 micron 0.40 mm nozzle: 60 - 180 micron 0.45 mm nozzle: 70 - 200 micron 0.50 mm nozzle: 80 - 230 micron 0.60 mm nozzle: 100 - 250 micron 0.80 mm nozzle: 120 - 300 micron 1 mm nozzle: 130 - 350 micron Layer height (resolution) 0.1 mm - 0.4mm(100-400 microns) Accuracy XYZ X:12.5, Y:12.5, Z:12.5 microns Print head travel speed 30 - 300 mm/s Assembly (deposition) speed < 2.5 mm²/s Working surface (heating table) aluminum table + removable glass + proprietary coating Working surface temperature 20 - 100 ºC Supported materials PLA, ABS, HIPS, ABS+, PET, CoPET, Elastan (Flex), Plastan, PVA, PC, PBT, Nylon, PA, HDPE, etc. cm. Nozzle temperature 180 - 280 ºC Nozzle heating time < 2 min. (280 ºC) Work surface warm-up time < 10 min. (100 ºC) Operating sound < 40dB Connection USB port USB-FLASH Physical dimensions Dimensions 380 x 370 x 420 mm Net weight 10kg Shipping weight 12kg Power requirements Input 220V, 50 - 60Hz Power consumption 30 - 230W Ambient conditions Environment Operating Ambient Temperature 5 - 40°C, Relative Humidity 10 - 70% non-condensing See Material Specifications for optimal conditions Software Cura, Simplify3D, Repeter-Host, etc. Supported OS MacOS, Windows and Linux File types STL, OBJ, M3D, etc. G-code support Additional options (UAH) auto-calibration 1100 (UAH) control via LAN 700 (UAH) control via WIFI 700 (UAH) Automatic power off 1300 (UAH) Second extruder 6000 (UAH) Joystick control 200 (UAH) Closed housing with adjustable temperature of the inner chamber 1500 (UAH) Features of the new model Electrics: print quality level + 30%; correction in the process of printing the Z axis; adjusting the brightness of the working chamber; additional cooling; plastic end sensor automatic material loading and unloading Mechanics: removable table; Design: additional body elements added white Body: two-component material
Mutya Habibie
Medan, Indonesia
USD
809.0/pcs
809.0
Buy Spectra Nova JA 256/80 AAA Printhead from Asokaprinting is 100% safe, because the purchase of products at Asokaprinting provides official genuine products and 100% money back guarantee.
Asokaprinting : Sells Brand model Printhead, Printers, Printerboard, Laminator, Scanner, Engraving Machine, Ink Catridges, Dental Miling Machines : Canon, Epson, Graptek, HP, Konica, Mimaki, Mutoh, Ricoh, Roland, Seiko, Spectra, Toshiba, Vutex, and Xaar.
Mutya Habibie
Medan, Indonesia
USD
504.0/pcs
504.0
Buy Epson GS-6000 Printhead - F188000 from Asokaprinting is 100% safe, because the purchase of products at Asokaprinting provides official genuine products and 100% money back guarantee.
Asokaprinting : Sells Brand model Printhead, Printers, Printerboard, Laminator, Scanner, Engraving Machine, Ink Catridges, Dental Miling Machines : Canon, Epson, Graptek, HP, Konica, Mimaki, Mutoh, Ricoh, Roland, Seiko, Spectra, Toshiba, Vutex, and Xaar.
Mutya Habibie
Medan, Indonesia
USD
800.0/pcs
800.0
Buy Konica KM1024 LHB 42PL UV Printhead from Asokaprinting is 100% safe, because the purchase of products at Asokaprinting provides official genuine products and 100% money back guarantee.
Asokaprinting : Sells Brand model Printhead, Printers, Printerboard, Laminator, Scanner, Engraving Machine, Ink Catridges, Dental Miling Machines : Canon, Epson, Graptek, HP, Konica, Mimaki, Mutoh, Ricoh, Roland, Seiko, Spectra, Toshiba, Vutex, and Xaar.
Mutya Habibie
Medan, Indonesia
USD
1120.0/pcs
1120.0
Buy Xaar 1003-GS6U Printhead from Asokaprinting is 100% safe, because the purchase of products at Asokaprinting provides official genuine products and 100% money back guarantee. Asokaprinting : Sells Brand model Printhead, Printers, Printerboard, Laminator, Scanner, Engraving Machine, Ink Catridges, Dental Miling Machines : Canon, Epson, Graptek, HP, Konica, Mimaki, Mutoh, Ricoh, Roland, Seiko, Spectra, Toshiba, Vutex, and Xaar.
PT. Machineprint
Indonesia
USD
1147.0/pcs
1147.0
Printing Method
Maximum Resolution
2880 x 1440 dpi1440 x 1440 dpi1440 x 720 dpi720 x 720 dpi720 x 360 dpiDraft: 360 dpi
Printing Technology
Advanced MicroPiezo TFP print head with ink repelling coating technology10-channel, drop-on-demand, ink jet print head
Minimum Ink Droplet Size
3.5 pl
Ink Type
Epson UltraChrome HDR inkProfessional-level pigment-based ink
Ink Palette
O, G, C, LC, VM, VLM, Y, LK, LLK, PK or MK
Ink Cartridge Configuration
11 individual cartridges
Compatible Ink Cartridges
Included: 80 ml Starter ink cartridges200 ml replacement cartridges:Photo Black (T653100), Cyan (T653200), Vivid Magenta (T653300), Yellow (T653400), Light Cyan (T653500), Vivid Light Magenta(T653600), Light Black (T653700), Light Light Black (T653800), Matte Black (T653900), Orange (T653A00), Green (T653B00)
Shelf Life
Ink: 2 years from production date or 6 months after opening
Number of Nozzles
Color and monochrome: 10 x 360 nozzles
Line Accuracy
±0.2% of specified page length
Print Archival Life
With Epson UltraChrome HDR Ink:Color: Up to 200 years B&W: Over 200 yearsActual print stability will vary according to media, printed image, display conditions, light intensity, humidity and atmospheric conditions
Performance
Print Speed
8 x 10″ (216 x 254mm): from 0:59-4:15 – Normal is 1:28 11″x 14″ (279 x 356mm): from 1:42-7:00 – Normal is 2:31 16″x 20″ (406 x 507mm): from 2:46-11:40 – Normal is 4:11
Printer Duty Cycle
Not Specified by Manufacturer
Paper Handling
Paper Sizes
Single sheets: 8.0 x 10.0″ (216 x 254mm)-17.0 x 24.0″ (432 x 610mm)
Maximum Paper Width
17″ (432mm)
Maximum Printable Area
Left and right margins 0-3mm each (0.24″ total) Maximum printable width 17.23″ (438mm) – full bleed 17″ width Maximum printable length limited by application, OS, and driver/RIP used
Borderless Photo Sizes
Complete borderless printing on the following roll media sizes:8.0″ (216mm), 10.0″ (254mm), 11.0″ (279mm), 13.0″ (330mm), 14.0″ (356mm), 16″ (406mm), 16.5″ (419mm), 17″ (432mm)Top and bottom edges can be automatically cut to any length when printing on roll media
Paper Types
Epson Photographic, Fine Art, Proofing, Signage, Coated Matte, Coated Gloss papersThird party papers up to 1.5mm thickness
Paper Capacity
20-100 sheets
Media Weight
12 lb (46 gsm) bond – up to 1.5 mm posterboard
Core Size
2″(51mm) and 3.0″ (76mm)
Maximum Media Roll Diameter
4.0″ (102mm) or 6.0″ (152mm)
Maximum Roll Print Length
Up to 132′ (40.2 m) – limited by core diameter
Paper-Feed Method
Roll feedAuto loading cassette: 0.08-0.27mm thick media, 20-100 sheet capacity based on media type and thickness
Cutter
Built-in rotary cutterAutomatic and manual single pass cut on up to 17″ (432mm) wide roll media
Connectivity
Interfaces
1 x hi-speed USB 2.0 (1.1 compatible)1 x Ethernet port – 10/100Base-T
Compatible Memory Cards
N/A
Direct Print Capable
N/A
Network Capable
Yes, wired Ethernet 10/100Base-T
PostScript Support
Epson ESC/P 2 raster photographic drivers standardOptional PANTONE licensed and SWOP certified Adobe PostScript RIP by EFI (EFI eXpress included only with Designer Edition bundle)Supported by most leading third-party RIPs
Operating Systems Supported
Windows: XP, Vista, and Windows 7 (32 & 64-bit)Mac, EFI eXpress: OS X 10.5-10.8Mac, Printer Only: OS X 10.5 or later
Physical
Status Display
High-resolution 2.5″ (62mm) color LCD
Image Preview Display
N/A
Front Panel Controls
Yes
Operating Temperature
Operating: 50-95°F (10-35°C)Storage: -4-104°F (-20-40°C)
Operating Humidity
Relative: 20-80% Operating: 40-50% RH
Acoustic Noise
Approximately 45 dB(A) according to ISO 7779
Power Requirements
110-120VAC, 50/60 Hz, 1.0A
Power Consumption
Operating: approx. 52W or lessStandby: <8.5WPower off: <0.5W
Safety Compliance
Safety standards:UL 60950-1, CSA C22.2 No.60950-1, Low Voltage Directive 2006/95/EC – EN60950-1 EMC:FCC Part 15 subpart B class B, CAN/CSA-CEI/IEC CISPR 22 Class B, AS/NZS CISPR Class B, EMC Directive 2004/108/EC – EN 55022 Class B, EN 55024, EN61000-3-2, EN61000-3-3
Dimensions (WxHxD)
34.0 x 16.0 x 30.0″ (864 x 406 x 762mm)
Weight
115 lb (52.2 kg)
Packaging Info
Package Weight
144.2 lb
Box Dimensions (LxWxH)
40.0 x 36.0 x 23.0″
