Ürün açıklaması

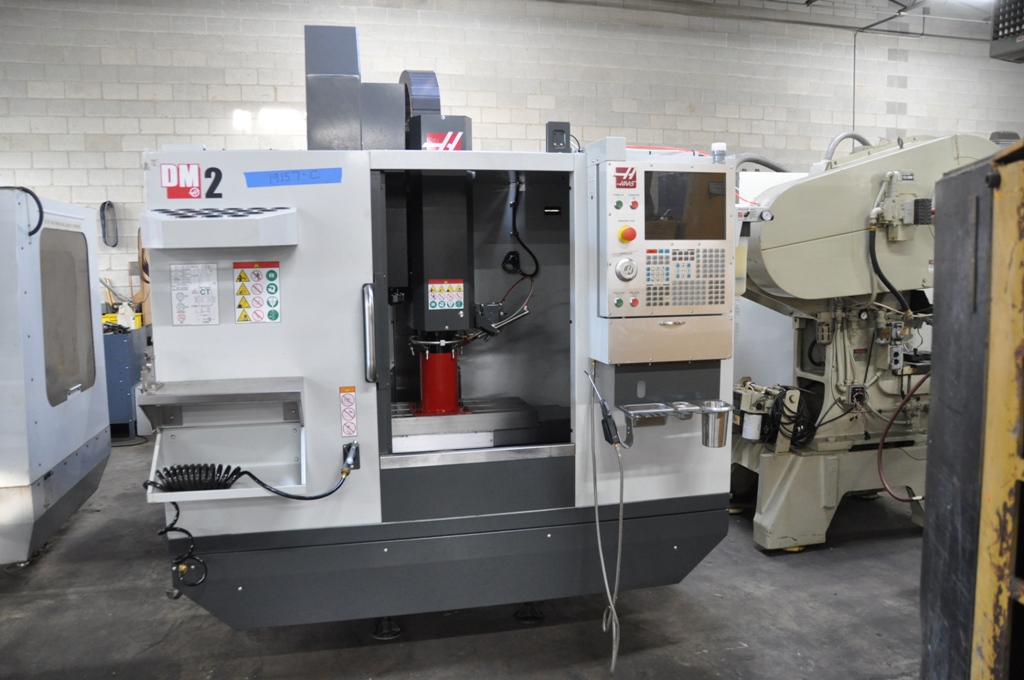

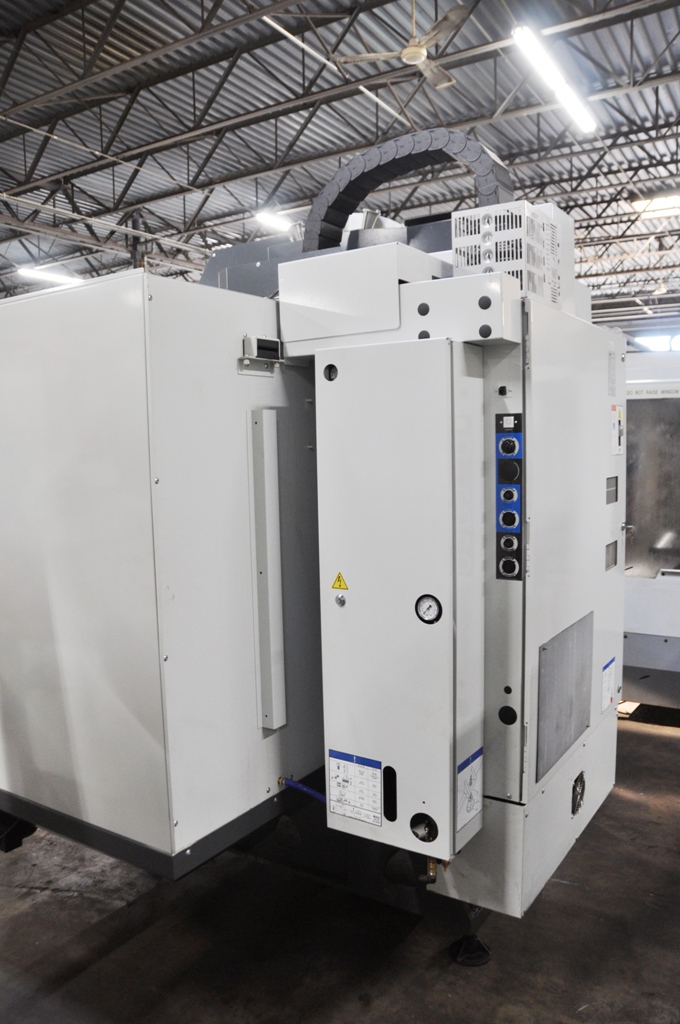

The G2R company offers high-quality equipment from the American manufacturer according to the following technical characteristics:
• Max. X-axis travel, mm 711
• Max. movement along the Y axis, mm 406
• Max. movement along the Z axis, mm 394
• Maximum distance from table to spindle end, mm 546
• Minimum distance from the table to the spindle end, mm 152

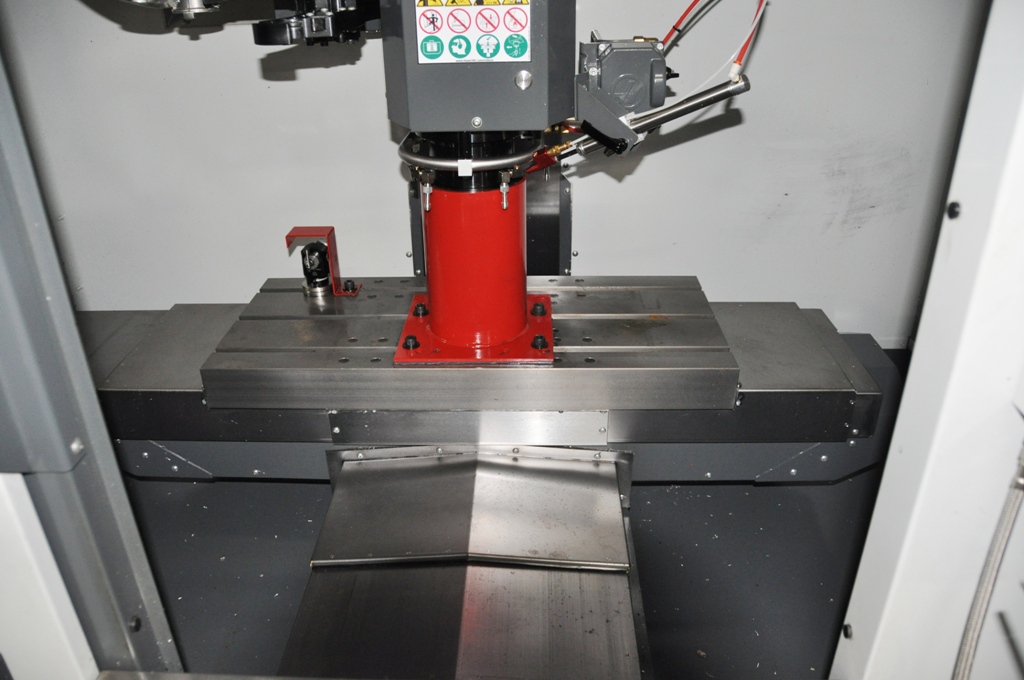

• Table length, mm 864
• Table width, mm 381
• Max. load on the table (equal distributed), kg 113
• Width of T-shaped grooves, mm 16
• Distance between T-shaped grooves, mm 125
• Spindle taper size 40
• Maximum spindle speed, rpm 10000, 12000 *, 15000 *
• Max. spindle power, kW 11.2
• Max. torque, Nm 62
• Max. axial force, kN 18.7
• Max. idle feed speed, m / min 61
• Max. working feeds along the XYZ axes, m / min 30.5
• Number of positions in the automatic tool changer, pcs 18 + 1
• Max. tool diameter (with occupied adjacent positions), mm 64
• Max. tool weight, kg 2.5
• Tool change time (average), sec 1.8
• Positioning accuracy, mm ± 0.0050
• Repeatability, mm ± 0.0025
• Volume of the coolant tank, l 208
• Approximate weight of the machine (depending on the configuration), kg 2870
• Warranty, months. 12
We will find the necessary equipment for you, conduct all the necessary negotiations, prepare all legal documents, test, make a purchase, arrange delivery and installation, and provide warranty service.
From laser head to milling center; from couplings - to complete equipment for industrial production - our company will help you save money and conduct a transaction in the USA without any complications.
To contact us, write, call - we will be glad to cooperate with you!
Daha fazla bilgi edinin
Mevcudiyetini kontrol ediniz
180000.0
USD/adet
Minimum sipariş: 1 pcs
Sevkiyat kapasitesi: 1 pcs/günde
