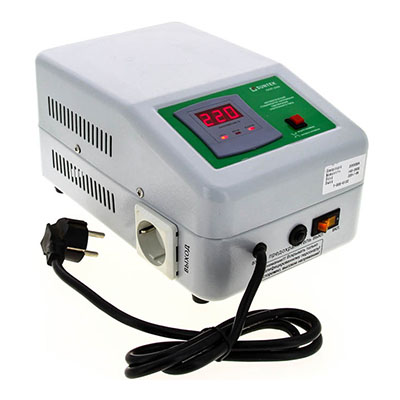

Relay voltage stabilizer SUNTEK 1500 VA - 90763

Alternate Heating Systems creates high-grade, efficient residential and commercial heating systems. We strive to pave the way in the energy industry by offering efficient heating solutions that allow our customers the ability to save $100's or $1,000's without being married to it. We manufacture a wide range of products including wood gasification, coal stokers, traditional hand-fired, and even waste-oil boilers. Our solutions are lasting and are meant to operate for a lifetime.

PVC blind screen for Ventale heating radiator. Features of the model: the front panel of the screen is made of louvered PVC slats. The front panel is attached to the metal frame with hardware. Why: used to mask heating radiators, gives an aesthetic appearance. From what: the frame of the screen is made of cold-rolled steel, the front panel is made of PVC. IMPORTANT!!! Supplied unassembled, requires screw assembly.

Three-phase automatically transformers (variac transformers) with a range of output voltage control from 0 to 430 Volts with an LCD display. Specifications:   Rated power, VA 30000     Maximum current, A 40     Operating input voltage range, V 0-380     Nom. output voltage range, V 0-430     Output voltage error,% less than 1%     Warranty 2 years     Distortion sine wave missing     Connection option terminals (connection kit)     Operating range t ° C -5 - +50     Cooling passive     Network Connection Method terminals     Housing metal     Overall dimensions h-v-cm 34х26,5х113,5     Weight, kg. 102

Three-phase automatically transformers (variac transformers) with a range of output voltage control from 0 to 430 Volts with an LCD display. Specifications:   Rated power, VA 20000     Maximum current, A 27     Operating input voltage range, V 0-380     Nom. output voltage range, V 0-430     Output voltage error,% less than 1%     Warranty 2 years     Distortion sine wave missing     Connection option terminals (connection kit)     Operating range t ° C -5 - +50     Cooling passive     Network Connection Method terminals     Housing metal     Overall dimensions h-v-cm 32х26,5х59     Weight, kg. 60

Three-phase automatically transformers (variac transformers) with a range of output voltage control from 0 to 430 Volts with an LCD display. Specifications:   Rated power, VA 15000     Maximum current, A 20     Operating input voltage range, V 0-380     Nom. output voltage range, V 0-430     Output voltage error,% less than 1%     Warranty 2 years     Distortion sine wave missing     Connection option terminals (connection kit)     Operating range t ° C -5 - +50     Cooling passive     Network Connection Method terminals     Housing metal     Overall dimensions h-v-cm 32х26,5х59     Weight, kg. 50

Three-phase automatically transformers (variac transformers) with a range of output voltage control from 0 to 430 Volts with an LCD display Specifications:   Rated power, VA 9000     Maximum current, A 12     Operating input voltage range, V 0-380     Nom. output voltage range, V 0-430     Output voltage error,% less than 1%     Warranty 2 years     Distortion sine wave missing     Connection option terminals (connection kit)     Operating range t ° C -5 - +50     Cooling passive     Network Connection Method terminals     Housing metal     Overall dimensions h-v-cm 29х23х52     Weight, kg. 33 Application areas: - in all cases where non-standard voltage is required; - used in industries where temperature control is required; - as an additional device for transistor recorders, machine tools; - in scientific laboratories; - on the productions involved in the design and adjustment of TV receivers and other household appliances; - when testing fuses, regulation of relays, circuit breakers, current limiters, etc.; - in the oil and other industries.

Three-phase automatically transformers (variac transformers) with a range of output voltage control from 0 to 430 Volts with an LCD display. Specifications:   Rated power, VA 6000     Maximum current, A 8     Operating input voltage range, V 0-380     Nom. output voltage range, V 0-430     Output voltage error,% less than 1%     Warranty 2 years     Distortion sine wave missing     Connection option terminals (connection kit)     Operating range t ° C -5 - +50     Cooling passive     Network Connection Method terminals     Housing metal     Overall dimensions h-v-cm 26х20,5х50     Weight, kg. 26

Three-phase automatically transformers (variac transformers) with a range of output voltage control from 0 to 430 Volts with an LCD display. Specifications:   Rated power, VA 3000     Maximum current, A 4     Operating input voltage range, V 0-380     Nom. output voltage range, V 0-430     Output voltage error,% less than 1%     Warranty 2 years     Distortion sine wave missing     Connection option terminals (connection kit)     Operating range t ° C -5 - +50     Cooling passive     Network Connection Method terminals     Housing metal     Overall dimensions h-v-cm 18х25х37     Weight, kg. 22   Three-phase Variac transformer SUNTEK is a powerful and reliable device that is indispensable in production, in workshops and factories. Meter scale and digital voltmeter contribute to the simplicity and ease of operation. The metal case protects the autotransformer from mechanical damage. The main difference between laboratory autotransformers and conventional ones is that the mobile contact in the winding allows changing the number of turns included in the circuit and thus makes it possible to set the voltage in a wide range, for example, in a single-phase network – from 0 to 300 V, in a three-phase – from 0 to 430 V. the change in The number of turns occurs smoothly, so it is possible to obtain the most accurate voltage values and a pure sine wave at the output. In addition, this device is lighter and more compact than analogues made according to the traditional scheme, and has a much greater efficiency (up to 98%). To control the operation of the control panel has a voltmeter and ventilation grilles in the body contribute to the natural cooling of the device and prevent overheating.

The variac transformer SUNTEK RED 5000VA is a single-phase device with an LCD board that operates on 220 V mains and is used to permanently hold a given output voltage. Operating range variac transformers 0-300 volts. Rated current 20 A. Specifications:   Rated power, VA 5000     Maximum current, A 20     Operating input voltage range, V 0-250     Nom. output voltage range, V 0-300     Output voltage error,% less than 1%     Warranty 2 years     Distortion sine wave missing     Connection option terminals (connection kit)     Operating range t ° C -5 - +50     Cooling passive     Network Connection Method terminals     Housing metal     Overall dimensions h-v-cm 25х31х28     Weight, kg. 17   Variac transformer is a type of transformer. The two windings in this device are directly connected to each other. As a result, between them there are two types of communication, one of which is electromagnetic, and the other electric. The coil has several pins with different voltage output values. The difference from conventional transformer is increased efficiency, due to partial change in power. The autotransformer in our time has found wide application both for industrial purposes and in everyday life. Variac transformer (laboratory autotransformer with manual adjustment) - the need of any radio amateur, allows you to find out the technical characteristics of radio elements, chips, devices and homemade products. Find out the exact characteristics and behavior at different voltages, currents, temperatures will allow experiments and measurements carried out with the help of Variac transformers of low power (test relays, capacitors, microcircuit, working circuit, etc.). Variac transformer SUNTEK with adjustable output voltage from 0 Volt to 300 Volt with LCD display, displaying the output voltage as accurately as the switch variac transformer, is indispensable in these cases.

The variac transformer SUNTEK RED 2000VA is a single-phase device with an LCD board that operates on 220 V mains and is used to permanently hold a given output voltage. Operating range variac transformers 0-300 volts. Rated current 8 A. Specifications:   Rated power, VA 2000     Maximum current, A 8     Operating input voltage range, V 0-250     Nom. output voltage range, V 0-300     Output voltage error,% less than 1%     Warranty 2 years     Distortion sine wave missing     Connection option plug/socket     Operating range t ° C -5 - +50     Cooling passive     Network Connection Method plug/socket     Housing metal     Overall dimensions h-v-cm 19х20х18     Weight, kg. 8   Variac transformer is a type of transformer. The two windings in this device are directly connected to each other. As a result, between them there are two types of communication, one of which is electromagnetic, and the other electric. The coil has several pins with different voltage output values. The difference from conventional transformer is increased efficiency, due to partial change in power. The autotransformer in our time has found wide application both for industrial purposes and in everyday life. Variac transformer (laboratory autotransformer with manual adjustment) - the need of any radio amateur, allows you to find out the technical characteristics of radio elements, chips, devices and homemade products. Find out the exact characteristics and behavior at different voltages, currents, temperatures will allow experiments and measurements carried out with the help of Variac transformers of low power (test relays, capacitors, microcircuit, working circuit, etc.). Variac transformer SUNTEK with adjustable output voltage from 0 Volt to 300 Volt with LCD display, displaying the output voltage as accurately as the switch variac transformer, is indispensable in these cases.

The variac transformer SUNTEK RED 1000VA is a single-phase device with an LCD board that operates on 220 V mains and is used to permanently hold a given output voltage. Operating range variac transformers 0-300 volts. Rated current 4 A. Specifications:   Rated power, VA 1000     Maximum current, A 4     Operating input voltage range, V 0-250     Nom. output voltage range, V 0-300     Output voltage error,% less than 1%     Warranty 2 years     Distortion sine wave missing     Connection option plug/socket     Operating range t ° C -5 - +50     Cooling passive     Network Connection Method plug/socket     Housing metal     Overall dimensions h-v-cm 19х20х18     Weight, kg. 6   Variac transformer is a type of transformer. The two windings in this device are directly connected to each other. As a result, between them there are two types of communication, one of which is electromagnetic, and the other electric. The coil has several pins with different voltage output values. The difference from conventional transformer is increased efficiency, due to partial change in power. The autotransformer in our time has found wide application both for industrial purposes and in everyday life. Variac transformer (laboratory autotransformer with manual adjustment) - the need of any radio amateur, allows you to find out the technical characteristics of radio elements, chips, devices and homemade products. Find out the exact characteristics and behavior at different voltages, currents, temperatures will allow experiments and measurements carried out with the help of Variac transformers of low power (test relays, capacitors, microcircuit, working circuit, etc.). Variac transformer SUNTEK with adjustable output voltage from 0 Volt to 300 Volt with LCD display, displaying the output voltage as accurately as the switch variac transformer, is indispensable in these cases.

The variac transformer SUNTEK RED 500VA is a single-phase device with an LCD board that operates on 220 V mains and is used to permanently hold a given output voltage. Operating range variac transformers 0-300 volts. Rated current 2 A. Specifications:   Rated power, VA 500     Maximum current, A 2     Operating input voltage range, V 0-250     Nom. output voltage range, V 0-300     Output voltage error,% less than 1%     Warranty 2 years     Distortion sine wave missing     Connection option plug/socket     Operating range t ° C -5 - +50     Cooling passive     Network Connection Method plug/socket     Housing metal     Overall dimensions h-v-cm 14x13x15     Weight, kg. 3.5   Variac transformer is a type of transformer. The two windings in this device are directly connected to each other. As a result, between them there are two types of communication, one of which is electromagnetic, and the other electric. The coil has several pins with different voltage output values. The difference from conventional transformer is increased efficiency, due to partial change in power. The autotransformer in our time has found wide application both for industrial purposes and in everyday life. Variac transformer (laboratory autotransformer with manual adjustment) - the need of any radio amateur, allows you to find out the technical characteristics of radio elements, chips, devices and homemade products. Find out the exact characteristics and behavior at different voltages, currents, temperatures will allow experiments and measurements carried out with the help of Variac transformers of low power (test relays, capacitors, microcircuit, working circuit, etc.). Variac transformer SUNTEK with adjustable output voltage from 0 Volt to 300 Volt with LCD display, displaying the output voltage as accurately as the switch variac transformer, is indispensable in these cases.
