Equipment for the processing of tires into crumb rubber

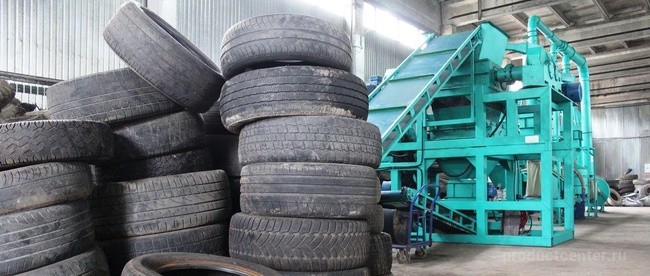

Alfa-SPK offers complex automatic lines for the processing of industrial rubber waste. The main activity is the processing of tires that are not suitable for further operation, the processing of tires into crumb with the separation of metal cord and textile threads. The end result of the processing of automobile tires and rubber is rubber crumb, free from foreign inclusions and divided into three fractions: 3-5mm, 1-3mm, 0.1-1mm. The clogging factor of crumb rubber is no more than 3%. Depending on your desire to produce final products from rubber crumb, we can offer you a press for the production of floor coverings (paving slabs) from rubber crumb, using the temperature extrusion method. Line for processing tires ATR500 line capacity of 500 kg / hour of cleaned rubber crumb broken into fractions, 100 kg / hour of crushed refined textile cord, 150 kg / hour of crushed refined metal cord. Requirements for the room 300m2, height 6 meters, width 10 meters, length 30 meters. Power consumption of the line is 150 kW. The maximum size of used car tires is 22.5. Operating temperature range from -20 to + 40C. The number of required personnel is 4 people. The line has a fully automatic cycle.
