Block-type tubular electric heaters / heating elements - 97581

Air heating may be needed in both domestic and industrial environments. To do this, you need to use a special air heating element, which will successfully cope with tasks of any complexity. If you want to buy high-quality dry electric air heating elements, the price of which will be reasonable, PC "Marion" is ready to offer you its services. Our company practices an individual approach to the situation of each client. Technical characteristics: - Length of the heating element (length of the metal shell of the heating element when unfolded) up to 6000mm - Diameter of the heating element tube: 18; 16; 13; 10; 8.5; 8.0; 7.4; 6.5 mm - Shape and configuration of heating element: any, specifying dimensions or according to drawings and sketches. - Power: calculated taking into account the operating parameters of the heating element. depending on diameter, tension, length. - Working environment: air and other gases and mixtures of gases, casting molds, compression molds, defrosting refrigeration units. - Voltage: on request 12; 24; 36; 42; 48; 60; 127; 220; 380. - Options or material for manufacture: stainless steel, carbon steel, titanium, seamless stainless steel. - Contact group options for connection: threaded rod, flat pin contact, welded insulated wire with or without a sealed rubber coupling and other options on request. - Mounting strips: if necessary, complete with various mounting strips of different sizes and shapes with and without threaded holes. - Complete with threaded fittings: m18, m12, m10, m14 and others. materials - stainless steel, brass, carbon steel.

At Marion you will find a wide range of water heating elements of various price categories. The company's warehouse has heating elements of various shapes and designs, and you can also order the production of heating elements to order. The price of such a device is quite reasonable and fully corresponds to its high quality. Manufactured according to GOST from high quality materials. Production time according to specifications is 7-10 days. Urgent production by agreement. Shipment of warehouse items on the day of payment Availability of certificates. 12 month warranty. Additional discounts for orders of 10 pieces or more. Regular customers receive various bonuses, discounts, deferred payment, free delivery. Delivery to any city in Russia. Material: Carbon steel; Stainless steel; with fins; with Teflon coating; seamless pipe; in a fluoroplastic shell.

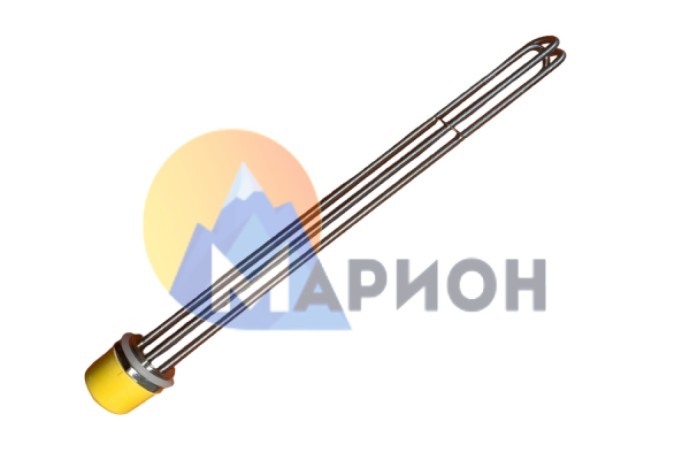

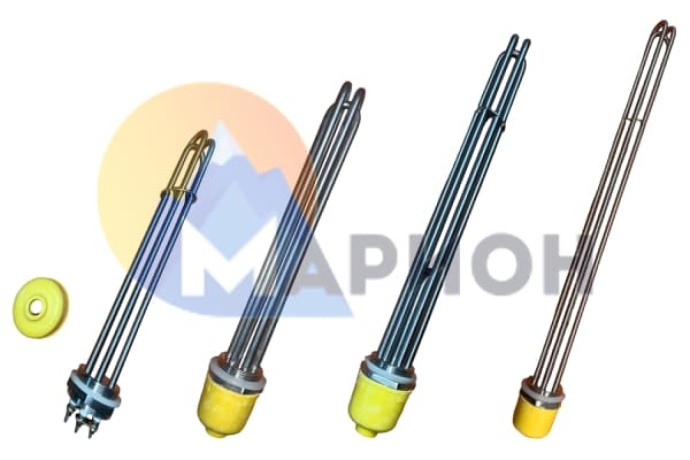

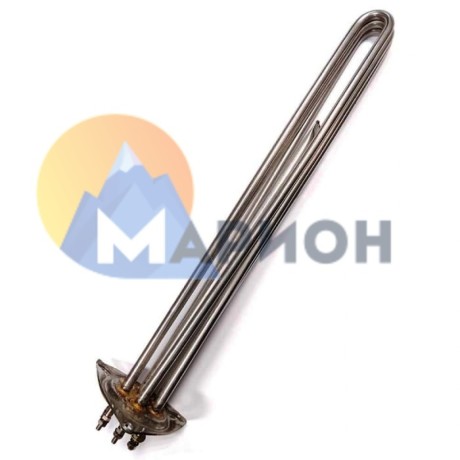

Heating element blocks (TENB) are mainly used for heating liquids and oil and are used in water heaters, steam generators, boilers and other industrial and domestic installations. The design of the heating element block consists of one or more electric heaters, hermetically sealed on a common flange. Block heating elements on a threaded flange are available in stock! Material of heating element tubes: stainless steel, carbon steel, brass Diameter of heating element tubes: 6.5; 8.5; 10.0; 13.0 and others as agreed Power: any as agreed Voltage: 12, 24, 36, 48, 60, 127, 220, 380 Additionally: Tube for the sensor, protective cap, spacer rings. Flange material: Stainless steel, carbon steel, brass Types of flanges: Threaded, stamped, machined.

Description characteristic: Power - 9 kW Chimney openings - upper Chimney pipe diameter: 120 mm. The furnace is made of cast iron, furnace steel, neck bricks, heat-resistant glass Fuel is wood and briquettes Top, bottom and doors are made of cast iron, front, sides and back are made of steel High combustion efficiency (80%) Ability to heat a room up to 100 m2 Glass dimensions 13 x 19.5 cm Maximum log/patik length 38-40 cm Weight 55 kg Stove height 75 cm Stove width 47.5 cm Stove depth 37 cm Possibility to remove the ashtray for easy ash removal Spacious firewood shelf Comfortable and easy to use Good and modern design. Price 8600 UAH.

Cooking boiler KPET100/9 electric 3 heating modes: weak, medium, maximum. Heating elements from stainless steel. Boiler drain valve 1 1/2 inches. The set includes a monocock for pouring water into the steam-water jacket and the boiler bowl. Length, mm 840 mmWidth, mm 900 mmHeight, mm 860 mmWater heating principle indirect, steam-water jacket Rated power consumption of one heating element 3 kWRated power consumption of one block of heating elements 9 kW Rated power consumption total 18 kWRated voltage, V 400/230 Water heating time in the working volume from +20С to +95С no more than +20С to +95С no more than 55 minutes minutes Pressure in the steam-water “jacket” no more than max 50 / working 20-45 kPa Nominal working volume of the boiler 100 l steam-water “jacket” 11.5 l Thread of the connecting fitting for connecting to the water supply system G1/2 inch Thread of the connecting fitting for connecting the safety valve G1/2 inch Net, no more than kg 121 kg Gross, no more than kg 173 kg

Electric kettle KPET60/9There is a mark for the upper level of the water inlet. 3 heating modes: weak, medium, maximum. Heating elements from stainless steel. Boiler drain valve 1 1/2 inches. The set includes a monocock for pouring water into the steam-water jacket and the boiler bowl. Protection systems: 1) dry run sensor (protects heating elements from burnout). 2) safety valve (valve actuation when the pressure reaches 0.05-0.065 MPa). 3) electrocontact pressure gauge (operating limit 0.02-0.045 MPa). Vessel material is AISI 304 austenitic stainless steel 1.5mm thick. Boiler vessel diameters - 425 mm. Length, mm 640 mmWidth, mm 900(1015) mmHeight, mm 860 mmPrinciple of water heating indirect, steam-water jacketRated power consumption of one heating element 3 kWRated power consumption of one block of heating elements 9 kW Rated power consumption total 9 kWRated voltage, V 400/230 PCS. Water heating time in the working volume from +20С to +95С no more than 45 minutes Pressure in the steam-water "jacket" no more than max 50 / working 20-45 kPa Nominal working volume of the boiler 60 l Volume of water poured into the steam-water "jacket" 5.7 l connections to the water supply system G1/2 inch Thread of the connecting fitting for connection of the safety valve G1/2 inch Net, no more than kg 95 kg Gross, no more than kg 145 kg

The food boiler Mariholodmash KPET160/9-01 is designed for cooking first, second and third courses, as well as cereals and vegetables at trade and public catering establishments. The body is made of stainless steel, the frame is made of carbon steel. There is a label for the upper level of the water inlet. 3 heating modes: weak, medium, maximum. Stainless steel heating elements. A tap for draining liquid from the boiler 1 1/2 inches. Included is a mono tap for pouring water into the steam-water jacket and the boiler bowl. Protection systems : 1) dry running sensor (protects heating elements from burnout). 2) safety valve (valve actuation when pressure reaches 0.05-0.065 MPa). 3) electrocontact pressure gauge (operating limit 0.02-0.045 MPa). Vessel material is made of AISI 304 austenitic stainless steel 1.5 mm thick. Diameters of the boiler vessel are 652 mm. °С and relative humidity of the ambient air - 45-80%. 3 Deviation in overall dimensions ± 5 mm Length: 840 mm. Width: 900 mm. Height: 860 mm. 3 kW. The nominal power consumption of one block of heating elements is 9 kW. Rated power consumption total 18 kW. Rated voltage V 400/230. Number of heating elements blocks 2 pcs. Water heating time in the working volume from + 20С to + 95С no more than 60 minutes. Pressure in the steam-water "jacket" no more than max 50 / working 20 -45 kPa. The water pressure in the water supply system is 100 ± 589 kPa. The nominal working volume of the boiler is 160 l. The volume of water poured into the steam-water "jacket" is 11.5 l. The thread of the connecting fitting for connecting to the water supply system is G1/2 inch. 2 inches. Net: no more than 127 kg. Gross: no more than 179 kg.

The food boiler Mariholodmash KPET250/9 is designed for cooking first, second and third courses, as well as cereals and vegetables at trade and public catering establishments. The body is made of stainless steel, the frame is made of carbon steel. The principle of water heating is indirect, steam jacket There is a mark for the upper level of the water inlet. 3 heating modes: weak, medium, maximum. Stainless steel heating elements. A tap for draining liquid from the boiler 1 1/2 inches. jacket and bowl of the boiler. Protection systems: 1) dry-running sensor (protects heating elements from burnout). 2) safety valve (valve actuation when pressure reaches 0.05-0.065 MPa). MPa). Vessel material is made of AISI 304 austenitic stainless steel 1.5 mm thick. Diameters of the boiler vessel are 652 mm. 20-25 °C and relative humidity of the ambient air - 45-80%. 3 Deviation in overall dimensions ± 5 mm. Length: mm 840 mm. the power of one heating element is 3 kW. The nominal power consumption of one block of heating elements is 9 kW. Rated power consumption total 18 kW. Rated voltage V 400/230. Number of heating elements blocks 2 pcs. Water heating time in the working volume from + 20С to + 95С no more than 60 minutes. Pressure in the steam-water "jacket" no more than max 50 / working 20 -45 kPa kPa. Water pressure in the water supply system 100 ± 589 kPa. Nominal working volume of the boiler 250 l. Volume of water poured into the steam-water "jacket" 19.5 l. connection of the safety valve G1/2 inch. Net: no more than 155 kg. Gross: no more than 210 kg.

Where is MECHANICAL SEAL Used? The parts that provide sealing between two machine parts, one of which is movable and the other fixed, are called shaft seal. It is generally used in places such as pumps, taps, shaft bearings. Where are ROTARY HEADS Used? It is used to transfer fluids such as hot water, hot oil, steam etc. to a fixed axis over the rotating drum.

The heating system of each house is a complex individual design, the installation of which requires a preparatory project that fully reflects the technical characteristics of the system, the most effective methods of its installation, energy consumption, ease of use and much more. Installation of pipes for the heating system, boilers, radiators and other elements of the network, carried out by qualified specialists, all this is a laborious process, which consists of several stages: - creation of a heating system plan; - preparation of premises for the installation of all network components; - installation of heating equipment. Features of installing heating in a private house At the first stage, you should decide on the choice of the type of fuel that will power the future engineering network. Nowadays, the main types of fuel for a private house are liquefied and natural gas, electricity, coal, firewood, and oil products. Next, you need to decide on the question directly about the type of heating of a country house: it can be water, electric or air. So the scheme of the utility network can be either one-pipe or two-pipe, with lower and upper piping, vertical or horizontal. A well-designed calculation is an efficient, convenient and reliable operation of the heating system.

We produce burners: gas, diesel, combined. Power range from 320 kW. up to 10.5 MW. Power regulation: gas - progressive, diesel - three-stage or modulating gas train - DN80; gas valve block - Dungs DMV-D5080; burner control - Siemens LFL1.322; servo - Siemens SQM10.15502; flame sensor - QRA2; gas filter - GF80; gas pressure regulator - Dungs FRS 5080; gas pressure sensor - Dungs GW50A5; tightness control unit - VPM-VC; fuel pump - Suntec Т2С; electric motor power - 15 kW.

Forced Burner Boilers Rima brand flexible cast iron sections Wide heating capacity option (from 30 kW to 930 kW) High efficiency 3-pass design High combustion performance with low flue emissions Use with liquid and gas fuel burners Standard and electronic control panel options
